Dana Parts for 20T Dumper

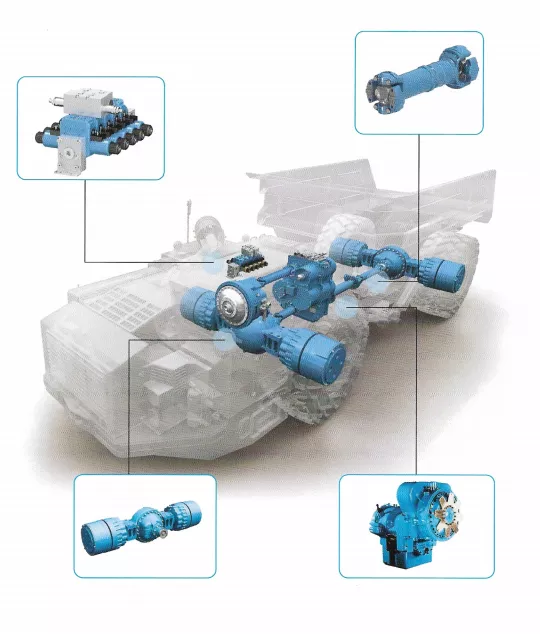

The 20T dump truck is an outstanding product of Dongfeng Dana that combines advanced technology and fine craftsmanship. The use of Dana parts in batches is unique in performance.
With a total weight of 42t and a 232 kw high-power engine, it can easily cope with heavy loads or climbing hills with a maximum climbing ability of 30%. The maximum guaranteed speed of 25 kph ensures efficient transportation rhythm. Both the front and rear axles use Dana 17D – xxx models, combined with a reliable braking system,which effectively ensure the safety of the vehicle during driving and operation, strong load-bearing capacity and durability.As part of EMAC, DANA provides non-power transmission and drive solutions for thermal management systems, control systems, transmissions and hydraulic accessories. We also provide components such as winches,pimp drives , piston motors and pumps.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
EMAC Group Participates in Automechanika Istanbul Exhibition in Istanbul
EMAC Group, provide a one-stop service with a complete power chain for Automotive, has announced its participation in the Automechanika Istanbul Exhibition in Istanbul, Turkey. The exhibition will take place from June 8th to June 11th, 2023.
As one of the largest automotive events in the world, the Automechanika Istanbul Show attracts exhibitors and visitors from across the globe. Our Company is excited to showcase its latest products and services at the event, which will provide an excellent opportunity to network with industry professionals and connect with potential customers.
As one of the largest automotive events in the world, the Automechanika Istanbul Show attracts exhibitors and visitors from across the globe. Our Company is excited to showcase its latest products and services at the event, which will provide an excellent opportunity to network with industry professionals and connect with potential customers.
EMAC Customer Interview-Thailand Engineering Company
EMAC’s customer interview video of 2023, EMAC finished a series of customer interview with 10 different business partners from different countries and regions, most of videos are took at customer’s company and factory, collecting all reviews and evaluations of EMAC, covering different industries in different country and regions, we believe this series of EMAC customer interview videos can help all of other customers get to know more about EMAC, our true customer interview case can greatly help customers relieve their worries, and build their confidence to cooperate with EMAC.
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust !
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust !
EMAC Customer Interview-Indonesia Shipyard
EMAC’s customer interview video of 2023, EMAC finished a series of customer interview with 10 different business partners from different countries and regions, most of videos are took at customer’s company and factory, collecting all reviews and evaluations of EMAC, covering different industries in different country and regions, we believe this series of EMAC customer interview videos can help all of other customers get to know more about EMAC, our true customer interview case can greatly help customers relieve their worries, and build their confidence to cooperate with EMAC.
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust!
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust!
Identification and Classification Report for Air Transport of Goods
Sinomac is dedicated to providing customers with safe, reliable cargo transportation services. Whether by sea or by air, ensuring safe delivery of our clients’ goods is at the heart of our operations. However, due to the complex nature of some cargo, especially industrial equipment like engines, many clients have concerns about whether such items might be classified as dangerous goods in air transport. To address these concerns, Sinomac provides a detailed analysis from multiple perspectives, including engine structure, relevant regulations, and the evaluations of authoritative inspection bodies, to give clients a clear and professional answer to this question.
Advantages of 20T Dumper
Stable and comfortable: The dump truck has a large support point distance, good driving stability, and is reliable and durable.
Long service life：Dual-axle design, stable structure, low maintenance cost, ensuring longer service life of the equipment.
Powerful power：Efficient and stable power transmission, low energy loss, continuous strong power output under heavy load, climbing and other working conditions.
Precise control: Precise flow control is achieved in lifting control, and the operation response is sensitive, which can make loading and unloading operations more accurate and efficient.
Technical Specifications
Dump Truck Series
Dump Truck Model | Max.Speed | Gross Weight | Engine Power | Engine Torque |
| 12T Dumper | 25 kph | 25 t | 260 kw | 1650 Nm |
| 20T Dumper | 25 kph | 42 t | 232 kw | 1362 Nm |
| 30T Dumper | 25 kph | 56 t | 290 kw | 1850 Nm |
Converter
Technical Indicator | Parameter | Model |
| Flex Plate | 16″ with nut M10×1.25 | Dana C5000 – xxx |
| Offset Ratio | 1 | Dana C5000 – xxx |
| Output Flange Type | 7C | Dana C5000 – xxx |
| ——END—— | ||
Transmission
Technical Indicator | Parameter | Model |
| Drop | LD | Dana R36000 – xxx |
| Input Flange Type | 8.5C | Dana R36000 – xxx |
| Output Flange Type | 7C | Dana R36000 – xxx |
| Control Valve Type | 24V | Dana R36000 – xxx |
| Modulation | Yes | Dana R36000 – xxx |
| Inching | No | Dana R36000 – xxx |
| Parking Brake | No | Dana R36000 – xxx |
| ——END—— | ||
Front Axle
Technical Indicator | Parameter | Model |
| Mount Type | Pad 889 | Dana 17D – xxx (Wuxi Plant) |
| Flange to Flange Distance | 1697.5mm | Dana 17D – xxx (Wuxi Plant) |
| Bevel Set Ratio | 41/9 | Dana 17D – xxx (Wuxi Plant) |
| Ring Gear Position | LHS (Looking from Input Flange Side) | Dana 17D – xxx (Wuxi Plant) |
| Planet Gear Ratio | 6 | Dana 17D – xxx (Wuxi Plant) |
| Wheel Hub Bolt | BCD 511.18mm, 19×0.75 – 16UNF | Dana 17D – xxx (Wuxi Plant) |
| Differential Type | Standard | Dana 17D – xxx (Wuxi Plant) |
| Service Brake | Posi Stop 16150 | Dana 17D – xxx (Wuxi Plant) |
| Parking Brake | N/A | Dana 17D – xxx (Wuxi Plant) |
| Input Flange Type | 8.5C | Dana 17D – xxx (Wuxi Plant) |
| ——END—— | ||
Rear Axle
Technical Indicator | Parameter | Model |
| Mount Type | Pad 889 | Dana 17D – xxx (Wuxi Plant) |
| Flange to Flange Distance | 1697.5mm | Dana 17D – xxx (Wuxi Plant) |
| Bevel Set Ratio | 41/9 | Dana 17D – xxx (Wuxi Plant) |
| Ring Gear Position | LHS (Looking from Input Flange Side) | Dana 17D – xxx (Wuxi Plant) |
| Planet Gear Ratio | 6 | Dana 17D – xxx (Wuxi Plant) |
| Wheel Hub Bolt | BCD 511.18mm, 19×0.75 – 16UNF | Dana 17D – xxx (Wuxi Plant) |
| Differential Type | Posi – Torque without Spring | Dana 17D – xxx (Wuxi Plant) |
| Service Brake | Posi Stop 16150 | Dana 17D – xxx (Wuxi Plant) |
| Parking Brake | N/A | Dana 17D – xxx (Wuxi Plant) |
| Input Flange Type | 8.5C | Dana 17D – xxx (Wuxi Plant) |
| ——END—— | ||
Cylinder Control
Technical Indicator | Parameter | Model |
| Lift Control | 80 – 120L/min | Dana Brevini HPV4/177 |
| Rating Pressure | 350bar | Dana Brevini proportional valve HPV4/177 |
| ——END—— | ||
FAQ
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
