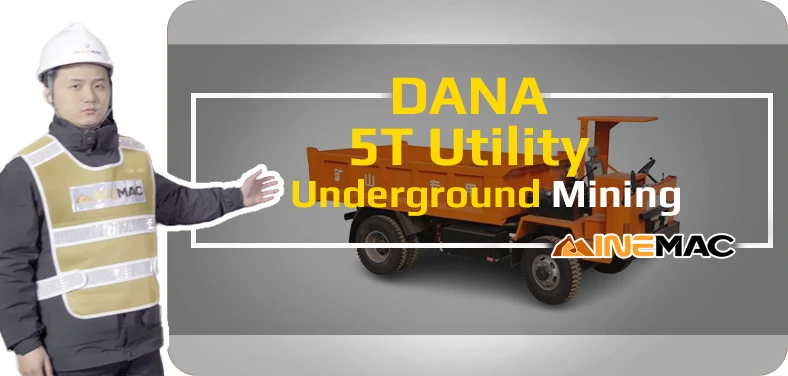

Dana Parts for 5T Utility

The 5T Utility is a Dongfeng Dana crafted device that combines high performance with practicality. With a GVWR of 13t and a bucket capacity of 5t, the Utility can reach a maximum speed of 30kph and has a climbing capacity of 30%. Equipped with a 55kw engine and 255Nm of torque, it is powerful enough to cope with both heavy-duty transportation and obstacle climbing, ensuring that the work is carried out efficiently. The front and rear axles are Dana 112-xxx with 6 planetary gear ratios and robust construction. This ensures safety, durability and reduced maintenance costs, both during driving and loading/unloading operations.

As part of EMAC, DANA provides non-power transmission and drive solutions for thermal management systems, control systems, transmissions and hydraulic accessories. We also provide components such as winches,pimp drives , piston motors and pumps.

We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

EMAC Group Participates in Automechanika Istanbul Exhibition in Istanbul

EMAC Group, provide a one-stop service with a complete power chain for Automotive, has announced its participation in the Automechanika Istanbul Exhibition in Istanbul, Turkey. The exhibition will take place from June 8th to June 11th, 2023.
As one of the largest automotive events in the world, the Automechanika Istanbul Show attracts exhibitors and visitors from across the globe. Our Company is excited to showcase its latest products and services at the event, which will provide an excellent opportunity to network with industry professionals and connect with potential customers.

EMAC Customer Interview-Thailand Engineering Company

EMAC’s customer interview video of 2023, EMAC finished a series of customer interview with 10 different business partners from different countries and regions, most of videos are took at customer’s company and factory, collecting all reviews and evaluations of EMAC, covering different industries in different country and regions, we believe this series of EMAC customer interview videos can help all of other customers get to know more about EMAC, our true customer interview case can greatly help customers relieve their worries, and build their confidence to cooperate with EMAC.
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust !

EMAC Customer Interview-Indonesia Shipyard

EMAC’s customer interview video of 2023, EMAC finished a series of customer interview with 10 different business partners from different countries and regions, most of videos are took at customer’s company and factory, collecting all reviews and evaluations of EMAC, covering different industries in different country and regions, we believe this series of EMAC customer interview videos can help all of other customers get to know more about EMAC, our true customer interview case can greatly help customers relieve their worries, and build their confidence to cooperate with EMAC.
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust!

Identification and Classification Report for Air Transport of Goods

Sinomac is dedicated to providing customers with safe, reliable cargo transportation services. Whether by sea or by air, ensuring safe delivery of our clients’ goods is at the heart of our operations. However, due to the complex nature of some cargo, especially industrial equipment like engines, many clients have concerns about whether such items might be classified as dangerous goods in air transport. To address these concerns, Sinomac provides a detailed analysis from multiple perspectives, including engine structure, relevant regulations, and the evaluations of authoritative inspection bodies, to give clients a clear and professional answer to this question.

Advantages of 5T Utility

  • Precise control: The hydraulic system is very responsive to operation, which enables precise control of both bucket loading and unloading as well as vehicle maneuvering.

  • Economical and stable: excellent payload capacity and optimized design of the power system ensure the power output while taking into account the excellent fuel efficiency.

  • Long life: durable components, vehicle structure design makes each tire load evenly, reducing the wear and tear of components.

  • Strong power: accurate transmission ratio setting and stable power transmission, low energy loss, whether for heavy-duty transportation or climbing and other working conditions, can maintain strong power output.

Technical Specifications

Handler Model:5T Utility
Max.Speed:30 kph
Max.Grade:30%
Engine Power:55 kw
Engine Torque:255 Nm
Front Axle Model:Dana 112-xxx
Rear Axle Model:Dana 112-xxx
Lead Time:15 – 30 Working Days
Payment Terms:T/T,L/C

coming soon

coming soon

coming soon

Telescopic Handler Series

Vehicle Model

Max.Speed

Max.Grade

Engine Power

Engine Torque

5T Utility 30 kph30%55 kw255 Nm

Converter

Technical Indicator

Parameter

Model

Flex Plate13.5″ without nutDana C270 – xxx
Offset Ratio0.96Dana C270 – xxx
Output Flange Type5CDana C270 – xxx
——END——
Transmission

Technical Indicator

Parameter

Model

DropLDDana RT20000 – xxx
Input Flange Type5CDana RT20000 – xxx
Output Flange Type6CDana RT20000 – xxx
Control Valve TypeMech.Dana RT20000 – xxx
ModulationYesDana RT20000 – xxx
InchingNoDana RT20000 – xxx
Parking BrakeNoDana RT20000 – xxx
——END——
Front Axle

Technical Indicator

Parameter

Model

Mount TypePADDana 112 – xxx
Flange to Flange Distance1660mmDana 112 – xxx
Bevel Set Ratio31/11Dana 112 – xxx
Ring Gear PositionRHS (Looking from Input Flange Side)Dana 112 – xxx
Planet Gear Ratio6Dana 112 – xxx
Wheel Hub BoltBCD 275mm, 8 studs M22×1.5, L=76mmDana 112 – xxx
Differential TypeStandardDana 112 – xxx
Service BrakeN266, 80 bar max.Dana 112 – xxx
Parking BrakeInternal SAHRDana 112 – xxx
Input Flange Type5CDana 112 – xxx
——END——
Rear Axle

Technical Indicator

Parameter

Model

Mount TypePADDana 112 – xxx
Flange to Flange Distance1660mmDana 112 – xxx
Bevel Set Ratio31/11Dana 112 – xxx
Ring Gear PositionRHS (Looking from Input Flange Side)Dana 112 – xxx
Planet Gear Ratio6Dana 112 – xxx
Wheel Hub BoltBCD 275mm, 8 studs M22×1.5, L=76mmDana 112 – xxx
Differential TypeStandardDana 112 – xxx
Service BrakeN266, 80 bar max.Dana 112 – xxx
Parking BrakeInternal SAHRDana 112 – xxx
Input Flange Type5CDana 112 – xxx
——END——
Hydraulic Cylinder Control

Technical Indicator

Parameter

Model

Flow60 – 140L/minDana Brevini AR/ON cartridge valve
Rating Pressure350barDana Brevini AR/ON cartridge valve
——END——
FAQ

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
