Dana Parts for AGV

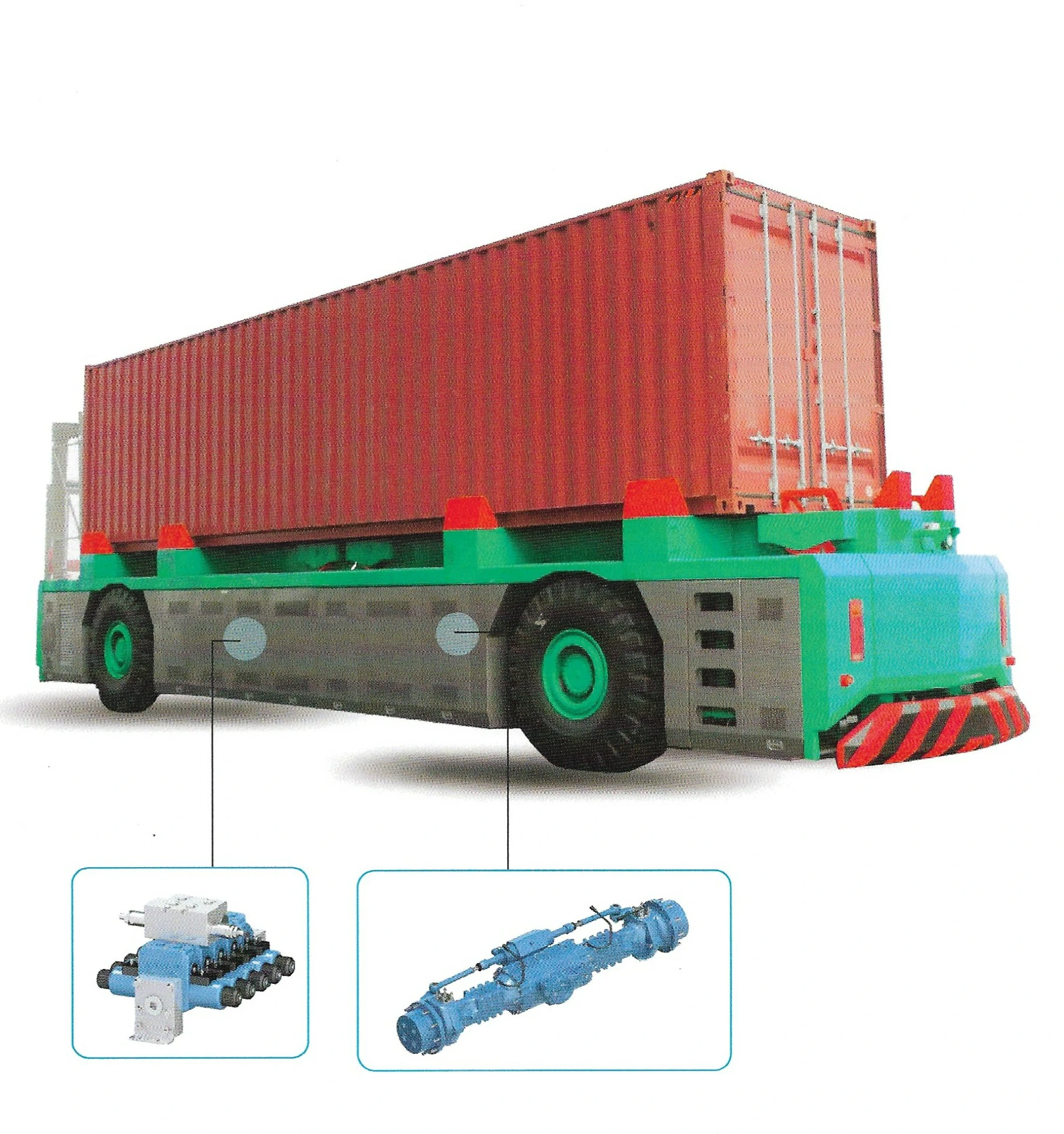

AGV is Dongfeng Dana is the leader in automated transportation with advanced technology and high quality Dana Part. Powerful Traction, Efficient Transportation With a gross weight of 6t, the AGV has a powerful traction weight of 24t and excellent power performance. With a 60kw power engine, it can reach a maximum speed of 22kph and a maximum gradient of 10%. The front and rear axles are made of Dana 223 – xxx components with a planetary gear ratio of 6 for a robust and reliable structure. Key components, such as axles and braking systems, have undergone strict quality control and verification under actual working conditions. It can provide a strong guarantee for the long-term stable operation of the enterprise in the long-time and high-frequency automated transportation operation.

As part of EMAC, DANA provides non-power transmission and drive solutions for thermal management systems, control systems, transmissions and hydraulic accessories. We also provide components such as winches,pimp drives , piston motors and pumps.

We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

EMAC Group Participates in Automechanika Istanbul Exhibition in Istanbul

EMAC Group, provide a one-stop service with a complete power chain for Automotive, has announced its participation in the Automechanika Istanbul Exhibition in Istanbul, Turkey. The exhibition will take place from June 8th to June 11th, 2023.
As one of the largest automotive events in the world, the Automechanika Istanbul Show attracts exhibitors and visitors from across the globe. Our Company is excited to showcase its latest products and services at the event, which will provide an excellent opportunity to network with industry professionals and connect with potential customers.

EMAC Customer Interview-Thailand Engineering Company

EMAC’s customer interview video of 2023, EMAC finished a series of customer interview with 10 different business partners from different countries and regions, most of videos are took at customer’s company and factory, collecting all reviews and evaluations of EMAC, covering different industries in different country and regions, we believe this series of EMAC customer interview videos can help all of other customers get to know more about EMAC, our true customer interview case can greatly help customers relieve their worries, and build their confidence to cooperate with EMAC.
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust !

EMAC Customer Interview-Indonesia Shipyard

EMAC’s customer interview video of 2023, EMAC finished a series of customer interview with 10 different business partners from different countries and regions, most of videos are took at customer’s company and factory, collecting all reviews and evaluations of EMAC, covering different industries in different country and regions, we believe this series of EMAC customer interview videos can help all of other customers get to know more about EMAC, our true customer interview case can greatly help customers relieve their worries, and build their confidence to cooperate with EMAC.
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust!

Identification and Classification Report for Air Transport of Goods

Sinomac is dedicated to providing customers with safe, reliable cargo transportation services. Whether by sea or by air, ensuring safe delivery of our clients’ goods is at the heart of our operations. However, due to the complex nature of some cargo, especially industrial equipment like engines, many clients have concerns about whether such items might be classified as dangerous goods in air transport. To address these concerns, Sinomac provides a detailed analysis from multiple perspectives, including engine structure, relevant regulations, and the evaluations of authoritative inspection bodies, to give clients a clear and professional answer to this question.

Advantages of Automated Guided Vehicle

  • Powerful traction: strong power system, can easily traction heavy loads, capable of all kinds of heavy-duty transportation tasks.

  • Safe and stable driving: Reliable axle and other key components, together with stable braking system, the driving process is safe and stable.

  • Efficient transmission: high quality transmission parts, precise and efficient power transmission, and sensitive operation response.

  • Durable: Adopting high-quality Dana components, which are wear-resistant and resistant to damage, and can adapt to long-term high-frequency use.

Technical Specifications

Excavator Model:AGV
Max.Speed:22 kph
Gross Weight:6 t
Engine Power:60 kw
Engine Torque:400 Nm
Front Axle Model:Dana 223-xxx
Rear Axle Model:Dana 223-xxx
Lead Time:15 – 30 Working Days
Payment Terms:T/T,L/C

coming soon

coming soon

coming soon

General Information

Vehicle Model

Max.Speed

Gross Weight

Engine Power

Engine Torque

Automated Guided Vehicle 22 kph6 t60 kw400 Nm

Front Axle

Technical Indicator

Parameter

Model

Mount TypePadDana 223 – xxx
Flange to Flange Distance2100mmDana 223 – xxx
Bevel Set Ratio31/10Dana 223 – xxx
Ring Gear PositionLHS (Looking from Input Flange Side)Dana 223 – xxx
Planet Gear Ratio6Dana 223 – xxx
Wheel Hub BoltBCD 335mm, 10 studs M22×1.5, L=86mmDana 223 – xxx
Differential TypeStandardDana 223 – xxx
Service BrakeN266, 80 bar max.Dana 223 – xxx
Parking BrakeInternal SAHRDana 223 – xxx
Input Flange TypeDIN150Dana 223 – xxx
Steering Cylinder45 degree max., 180 barDana 223 – xxx
——END——
Rear Axle

Technical Indicator

Parameter

Model

Mount TypePadDana 223 – xxx
Flange to Flange Distance2100mmDana 223 – xxx
Bevel Set Ratio31/10Dana 223 – xxx
Ring Gear PositionLHS (Looking from Input Flange Side)Dana 223 – xxx
Planet Gear Ratio6Dana 223 – xxx
Wheel Hub BoltBCD 335mm, 10 studs M22×1.5, L=86mmDana 223 – xxx
Differential TypeStandardDana 223 – xxx
Service BrakeN266, 80 bar max.Dana 223 – xxx
Parking BrakeInternal SAHRDana 223 – xxx
Input Flange TypeDIN150Dana 223 – xxx
Steering Cylinder45 degree max., 180 barDana 223 – xxx
——END——
FAQ

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
