Dana Parts for Concrete Mixer

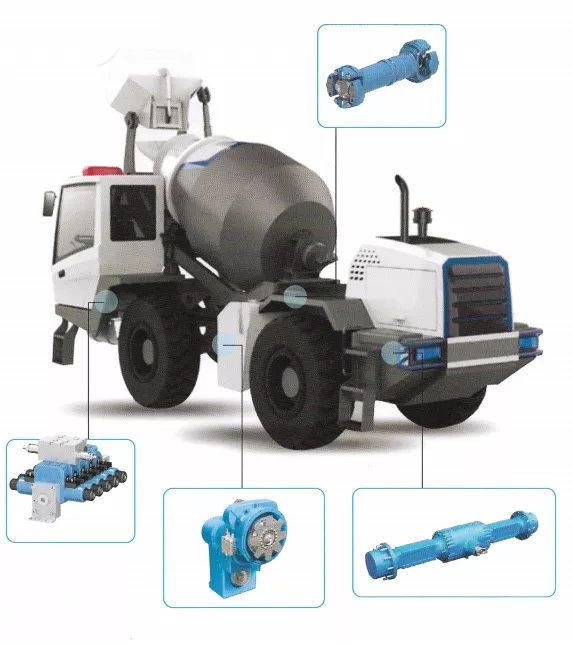

Concrete Mixer, with Dongfeng Dana’s exquisite craftsmanship and Dana Part’s reliable quality, provides stable, efficient and safe solutions for concrete mixing and transportation operations. GVW 21t, bucket capacity 8t, max speed 20 kph, 25% gradeability Hydraulic control system equipped with Danabrevini ARON Industry Valve and Cartridge, flow rate 60-140L/min adjustable, rated pressure 350 bar. Precise control of mixing and unloading operations ensures uniform concrete quality, easy and efficient unloading, and the front and rear axles are equipped with Dana 123-xxx, with 6 planetary gear ratios and robust construction. This ensures the safety and stability of the vehicle during transportation, effectively copes with heavy-duty working conditions, and prolongs its service life.
As part of EMAC, DANA provides non-power transmission and drive solutions for thermal management systems, control systems, transmissions and hydraulic accessories. We also provide components such as winches,pimp drives , piston motors and pumps.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
EMAC Group Participates in Automechanika Istanbul Exhibition in Istanbul
EMAC Group, provide a one-stop service with a complete power chain for Automotive, has announced its participation in the Automechanika Istanbul Exhibition in Istanbul, Turkey. The exhibition will take place from June 8th to June 11th, 2023.
As one of the largest automotive events in the world, the Automechanika Istanbul Show attracts exhibitors and visitors from across the globe. Our Company is excited to showcase its latest products and services at the event, which will provide an excellent opportunity to network with industry professionals and connect with potential customers.
As one of the largest automotive events in the world, the Automechanika Istanbul Show attracts exhibitors and visitors from across the globe. Our Company is excited to showcase its latest products and services at the event, which will provide an excellent opportunity to network with industry professionals and connect with potential customers.
EMAC Customer Interview-Thailand Engineering Company
EMAC’s customer interview video of 2023, EMAC finished a series of customer interview with 10 different business partners from different countries and regions, most of videos are took at customer’s company and factory, collecting all reviews and evaluations of EMAC, covering different industries in different country and regions, we believe this series of EMAC customer interview videos can help all of other customers get to know more about EMAC, our true customer interview case can greatly help customers relieve their worries, and build their confidence to cooperate with EMAC.
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust !
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust !
EMAC Customer Interview-Indonesia Shipyard
EMAC’s customer interview video of 2023, EMAC finished a series of customer interview with 10 different business partners from different countries and regions, most of videos are took at customer’s company and factory, collecting all reviews and evaluations of EMAC, covering different industries in different country and regions, we believe this series of EMAC customer interview videos can help all of other customers get to know more about EMAC, our true customer interview case can greatly help customers relieve their worries, and build their confidence to cooperate with EMAC.
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust!
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust!
Identification and Classification Report for Air Transport of Goods
Sinomac is dedicated to providing customers with safe, reliable cargo transportation services. Whether by sea or by air, ensuring safe delivery of our clients’ goods is at the heart of our operations. However, due to the complex nature of some cargo, especially industrial equipment like engines, many clients have concerns about whether such items might be classified as dangerous goods in air transport. To address these concerns, Sinomac provides a detailed analysis from multiple perspectives, including engine structure, relevant regulations, and the evaluations of authoritative inspection bodies, to give clients a clear and professional answer to this question.
Advantages of Concrete Mixer
Flexible Adaptation: It can be flexibly configured according to different site conditions and operational needs, and can realize good passability and grip, and adapt to a variety of complex construction scenarios.
Advantage of integrated design: highly integrated design from transmission system to axle, hydraulic control and other key components. This effectively reduces the chance of failure, improves the overall operating efficiency of the equipment and reduces downtime for maintenance.
Advantage of integrated design: highly integrated design from transmission system to axle, hydraulic control and other key components. This effectively reduces the chance of failure, improves the overall operating efficiency of the equipment and reduces downtime for maintenance.
Technical Specifications
Concrete Mixer Series
Concrete Mixer Model | Max.Speed | Max.Grade | Engine Power | Engine Torque |
| Concrete Mixer | 20 kph | 25% | 120 kw | 618 Nm |
Transmission
Technical Indicator | Parameter | Model |
| Drop | LD | Dana 24000 – xxx |
| Flex Plate | 13.5″ with nut .375×24 | Dana 24000 – xxx |
| Output Flange Type | DIN150 | Dana 24000 – xxx |
| Control Valve Type | 24V | Dana 24000 – xxx |
| Modulation | No | Dana 24000 – xxx |
| Inching | No | Dana 24000 – xxx |
| Parking Brake | No | Dana 24000 – xxx |
| ——END—— | ||
Front Axle
Technical Indicator | Parameter | Model |
| Mount Type | Pad | Dana 123 – xxx |
| Flange to Flange Distance | 1660mm | Dana 123 – xxx |
| Bevel Set Ratio | 33/9 | Dana 123 – xxx |
| Ring Gear Position | LHS (Looking from Input Flange Side) | Dana 123 – xxx |
| Planet Gear Ratio | 6 | Dana 123 – xxx |
| Wheel Hub Bolt | BCD 335mm, 10 studs M22×1.5, L=76mm | Dana 123 – xxx |
| Differential Type | Standard | Dana 123 – xxx |
| Service Brake | N266, 80 bar max. | Dana 123 – xxx |
| Parking Brake | Internal SAHR | Dana 123 – xxx |
| Input Flange Type | DIN120 | Dana 123 – xxx |
| ——END—— | ||
Rear Axle
Technical Indicator | Parameter | Model |
| Mount Type | Pad | Dana 123 – xxx |
| Flange to Flange Distance | 1660mm | Dana 123 – xxx |
| Bevel Set Ratio | 33/9 | Dana 123 – xxx |
| Ring Gear Position | LHS (Looking from Input Flange Side) | Dana 123 – xxx |
| Planet Gear Ratio | 6 | Dana 123 – xxx |
| Wheel Hub Bolt | BCD 335mm, 10 studs M22×1.5, L=76mm | Dana 123 – xxx |
| Differential Type | Standard | Dana 123 – xxx |
| Service Brake | N266, 80 bar max. | Dana 123 – xxx |
| Parking Brake | Internal SAHR | Dana 123 – xxx |
| Input Flange Type | DIN120 | Dana 123 – xxx |
| ——END—— | ||
Hydraulic Cylinder Control
Technical Indicator | Parameter | Model |
| Flow | 60 – 140L/min | Dana Brevini AR/ON |
| Rating Pressure | 350bar | Dana Brevini AR/ON |
| ——END—— | ||
FAQ
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
