Dana Parts for Material Handle

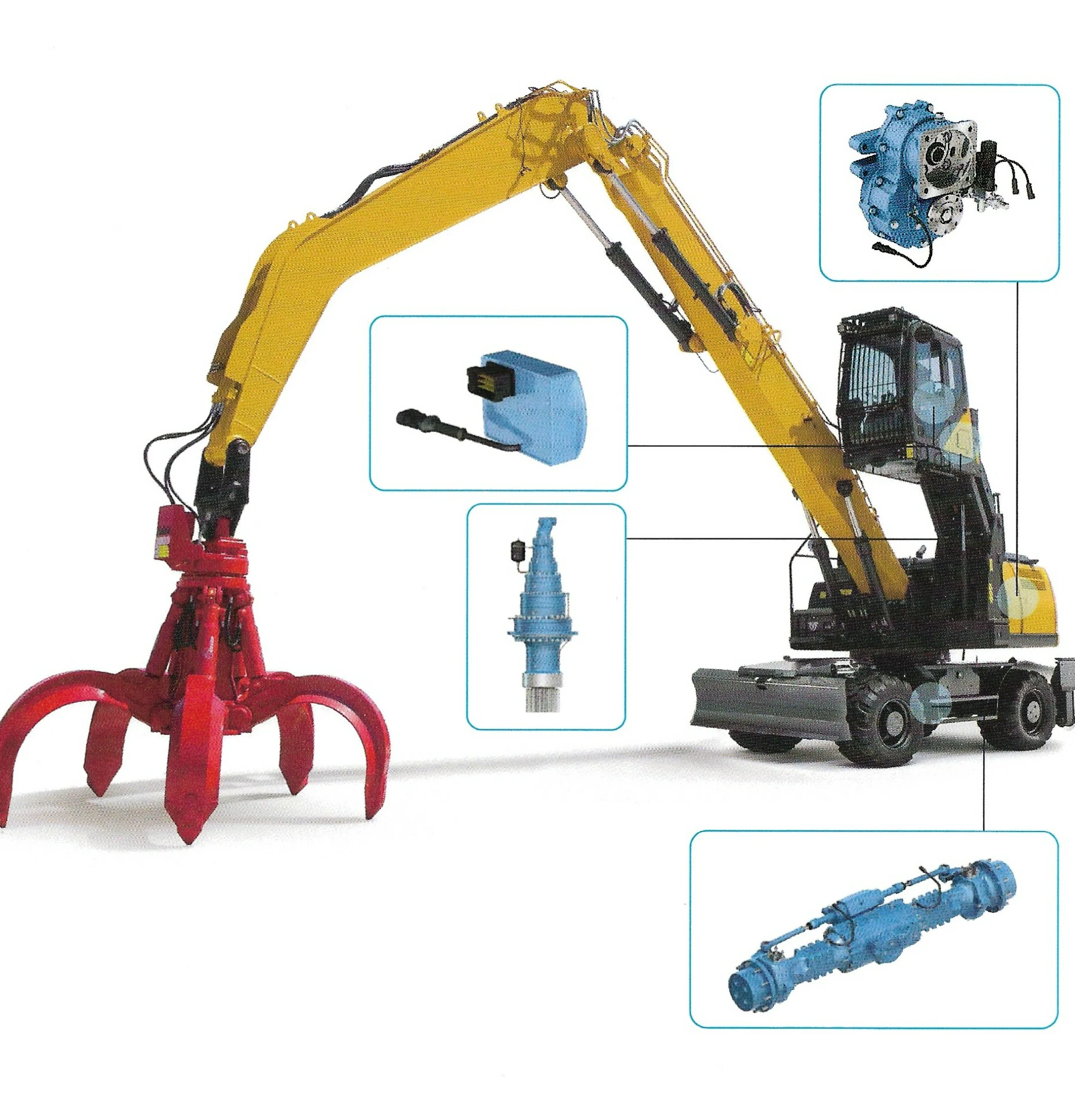

Material Handle is Dongfeng Dana’s specialized equipment for material handling scenarios, which stands out in the industry with its advanced technology and high quality Dana Part.
With a total weight of 85.5t and a total weight of 35.5t, it is equipped with a powerful 194kw engine. Whether it is handling large and heavy materials, or transferring quickly between different work areas, it can complete the tasks efficiently and improve the material handling efficiency by virtue of its stable and abundant power. The transmission system adopts Dana 360 – xxx, and the precise transmission ratio ensures efficient power transmission. The front and rear axles are Dana 246-xxx, with 4.571 planetary gear ratios and sturdy structure. The standard differential combines a dry disc service brake and a caliper parking brake for reliable braking. Whether braking while traveling or remaining stationary during operation, it provides safety for the equipment and the operator.

As part of EMAC, DANA provides non-power transmission and drive solutions for thermal management systems, control systems, transmissions and hydraulic accessories. We also provide components such as winches,pimp drives , piston motors and pumps.

We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

EMAC Group Participates in Automechanika Istanbul Exhibition in Istanbul

EMAC Group, provide a one-stop service with a complete power chain for Automotive, has announced its participation in the Automechanika Istanbul Exhibition in Istanbul, Turkey. The exhibition will take place from June 8th to June 11th, 2023.
As one of the largest automotive events in the world, the Automechanika Istanbul Show attracts exhibitors and visitors from across the globe. Our Company is excited to showcase its latest products and services at the event, which will provide an excellent opportunity to network with industry professionals and connect with potential customers.

EMAC Customer Interview-Thailand Engineering Company

EMAC’s customer interview video of 2023, EMAC finished a series of customer interview with 10 different business partners from different countries and regions, most of videos are took at customer’s company and factory, collecting all reviews and evaluations of EMAC, covering different industries in different country and regions, we believe this series of EMAC customer interview videos can help all of other customers get to know more about EMAC, our true customer interview case can greatly help customers relieve their worries, and build their confidence to cooperate with EMAC.
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust !

EMAC Customer Interview-Indonesia Shipyard

EMAC’s customer interview video of 2023, EMAC finished a series of customer interview with 10 different business partners from different countries and regions, most of videos are took at customer’s company and factory, collecting all reviews and evaluations of EMAC, covering different industries in different country and regions, we believe this series of EMAC customer interview videos can help all of other customers get to know more about EMAC, our true customer interview case can greatly help customers relieve their worries, and build their confidence to cooperate with EMAC.
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust!

Identification and Classification Report for Air Transport of Goods

Sinomac is dedicated to providing customers with safe, reliable cargo transportation services. Whether by sea or by air, ensuring safe delivery of our clients’ goods is at the heart of our operations. However, due to the complex nature of some cargo, especially industrial equipment like engines, many clients have concerns about whether such items might be classified as dangerous goods in air transport. To address these concerns, Sinomac provides a detailed analysis from multiple perspectives, including engine structure, relevant regulations, and the evaluations of authoritative inspection bodies, to give clients a clear and professional answer to this question.

Advantages of Material Handle

  • Strong power: the engine is powerful enough to easily cope with heavy-duty material handling tasks.

  • Reliable transmission: Dana’s transmission components are excellent, with stable power transmission and fewer operational failures.

  • Braking safety: excellent axle braking configuration, reliable traveling and parking brakes to ensure operational safety.

  • Durable: High quality components, wear-resistant and anti-damage, adapt to high-intensity and long-time use.

Technical Specifications

Handle Model:Material Handle
Curb Weight:35.5 t
Gross Weight:85.5 t
Engine Power:194 kw
Engine Torque:1021 Nm
Front Axle Model:Dana 246-xxx
Rear Axle Model:Dana 246-xxx
Lead Time:15 – 30 Working Days
Payment Terms:T/T,L/C

coming soon

coming soon

coming soon

General Information

Handle Model

Curb Weight

Gross Weight

Engine Power

Engine Torque

Material Handle35.5 t85.5 t194 kw1021 Nm

Transmission

Technical indicator

Parameter

Model

Ratio5.881/1.98Dana 360 – xxx
Input Flange Type45x2x30x21 DIN 5480Dana 360 – xxx
Output Flange Type7CDana 360 – xxx
——END——
Front Axle

Technical indicator

Parameter

Model

Mount TypePadDana 246 – xxx
Flange to Flange Distance2409mmDana 246 – xxx
Bevel Set Ratio5.571Dana 246 – xxx
Ring Gear PositionRHS (Looking from Input Flange Side)Dana 246 – xxx
Planet Gear Ratio4.571Dana 246 – xxx
Wheel Hub BoltBCD 422mm, 12 studs:75 – 16UNF, L=62.8mmDana 246 – xxx
Differential TypeStandardDana 246 – xxx
Service BrakeDry Disc BrakeDana 246 – xxx
Parking BrakeNoDana 246 – xxx
Input Flange Type7CDana 246 – xxx
Steering Cylinder27 degree max.Dana 246 – xxx
——END——
Rear Axle

Technical indicator

Parameter

Model

Mount TypePad 991Dana 246 – xxx
Flange to Flange Distance2409mmDana 246 – xxx
Bevel Set Ratio5.571Dana 246 – xxx
Ring Gear PositionRHS (Looking from Input Flange Side)Dana 246 – xxx
Planet Gear Ratio4.571Dana 246 – xxx
Wheel Hub BoltBCD 422mm, 12 studs:75 – 16UNF, L=62.8mmDana 246 – xxx
Differential TypeStandardDana 246 – xxx
Service BrakeDry Disc BrakeDana 246 – xxx
Parking BrakeCaliperDana 246 – xxx
Input Flange Type7CDana 246 – xxx
Steering Cylinder27 degree max.Dana 246 – xxx
——END——
FAQ

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.

The picture of Sale Manual showing the accessories and scopes of supply.

Engine Sale Manual

The picture of Installation Drawing showing the accessories and scopes of supply.

Installation Drawing

The picture of Installation Manual showing the accessories and scopes of supply.

Installation Manual

The picture of Operation Manual showing the accessories and scopes of supply.

Operation Manual

The picture of Engine Parts Catalogue showing the accessories and scopes of supply.

Parts Catalogue

The picture of Test Report and Certifcate showing the accessories and scopes of supply.

Report & Certifcate
