Dana Parts for Wet Sprayer

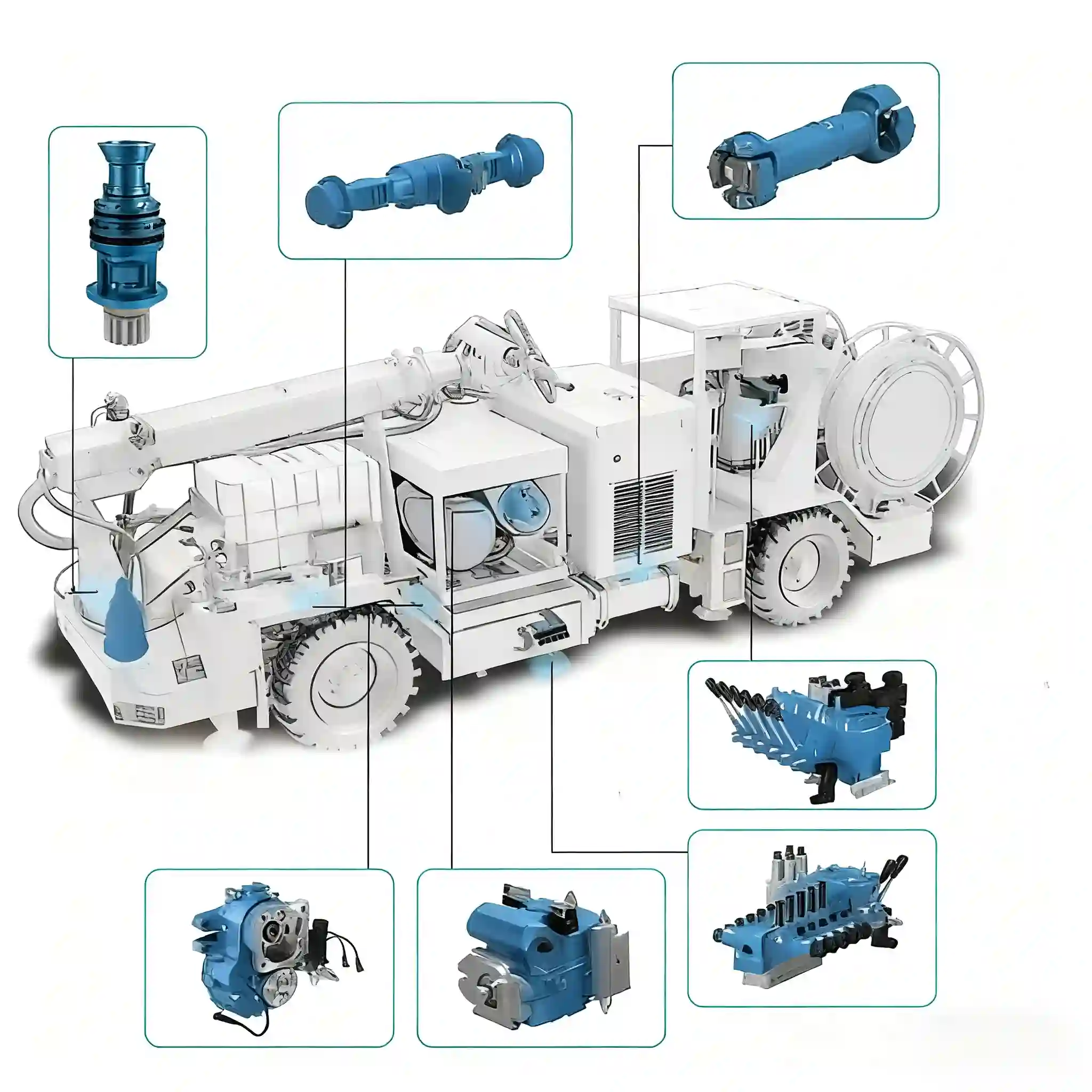

The Wet Sprayer is a Dongfeng Dana-built machine that combines advanced technology with the benefits of premium Dana Part.With a gross weight of 19t and a powerful 75 kw engine, the Wet Sprayer has a maximum speed of 20 kph and a climbing capacity of 30%, enabling it to move and work efficiently even under complicated conditions.The front and rear axles are Dana 223-xxx and Dana 357/223-xxx respectively, with planetary gear ratio of 6. The sturdy structure ensures the stability of traveling and working, and the high load carrying capacity.
As part of EMAC, DANA provides non-power transmission and drive solutions for thermal management systems, control systems, transmissions and hydraulic accessories. We also provide components such as winches,pimp drives , piston motors and pumps.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
EMAC Group Participates in Automechanika Istanbul Exhibition in Istanbul
EMAC Group, provide a one-stop service with a complete power chain for Automotive, has announced its participation in the Automechanika Istanbul Exhibition in Istanbul, Turkey. The exhibition will take place from June 8th to June 11th, 2023.
As one of the largest automotive events in the world, the Automechanika Istanbul Show attracts exhibitors and visitors from across the globe. Our Company is excited to showcase its latest products and services at the event, which will provide an excellent opportunity to network with industry professionals and connect with potential customers.
As one of the largest automotive events in the world, the Automechanika Istanbul Show attracts exhibitors and visitors from across the globe. Our Company is excited to showcase its latest products and services at the event, which will provide an excellent opportunity to network with industry professionals and connect with potential customers.
EMAC Customer Interview-Thailand Engineering Company
EMAC’s customer interview video of 2023, EMAC finished a series of customer interview with 10 different business partners from different countries and regions, most of videos are took at customer’s company and factory, collecting all reviews and evaluations of EMAC, covering different industries in different country and regions, we believe this series of EMAC customer interview videos can help all of other customers get to know more about EMAC, our true customer interview case can greatly help customers relieve their worries, and build their confidence to cooperate with EMAC.
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust !
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust !
EMAC Customer Interview-Indonesia Shipyard
EMAC’s customer interview video of 2023, EMAC finished a series of customer interview with 10 different business partners from different countries and regions, most of videos are took at customer’s company and factory, collecting all reviews and evaluations of EMAC, covering different industries in different country and regions, we believe this series of EMAC customer interview videos can help all of other customers get to know more about EMAC, our true customer interview case can greatly help customers relieve their worries, and build their confidence to cooperate with EMAC.
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust!
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust!
Identification and Classification Report for Air Transport of Goods
Sinomac is dedicated to providing customers with safe, reliable cargo transportation services. Whether by sea or by air, ensuring safe delivery of our clients’ goods is at the heart of our operations. However, due to the complex nature of some cargo, especially industrial equipment like engines, many clients have concerns about whether such items might be classified as dangerous goods in air transport. To address these concerns, Sinomac provides a detailed analysis from multiple perspectives, including engine structure, relevant regulations, and the evaluations of authoritative inspection bodies, to give clients a clear and professional answer to this question.
Advantages of Wet Sprayer
Precise control: The advanced hydraulic control system makes the equipment responsive in all operations and realizes precise control to ensure the high quality of wet spraying operation.
Economical and stable: excellent payload performance, reasonable layout of front and rear axles, scientific design of support points, strong stability during traveling and operation.
Long life: reasonable planetary gear ratio and stable structure. The overall design of the equipment makes the tire load uniform, with high-quality braking system, low maintenance costs, greatly extending the service life of the equipment.
Strong power: the transmission system and other components work together, power transmission is efficient and energy loss is small.
Technical Specifications
Wet Sprayer Series
Sprayer Model | Max.Speed | Max.Grade | Engine Power | Engine Torque |
| Wet Sprayer | 20 kph | 30% | 75 kw | 390 Nm |
Front Axle
Technical Indicator | Parameter | Model |
| Mount to Flange Distance | 2050mm | Dana 225 – xxx |
| Bevel Set Ratio | 10:33 | Dana 225 – xxx |
| Ring Gear Position | LHS (Looking from Input Flange Side) | Dana 225 – xxx |
| Planet Gear Ratio | 6 | Dana 225 – xxx |
| Wheel Hub Bolt | BCD 335mm, 10 studs M22×1.5, L=76mm | Dana 225 – xxx |
| Differential Type | Standard | Dana 225 – xxx |
| Service Brake | N266, 80 bar max. | Dana 225 – xxx |
| Parking Brake | Standard | Dana 225 – xxx |
| Input Flange Type | DIN120 | Dana 225 – xxx |
| Steering Cylinder | 32 degree max, 180 bar | Dana 225 – xxx |
| Mount Type | PAD | Dana 225 – xxx |
| ——END—— | ||
Rear Axle
Technical Indicator | Parameter | Model |
| Flange to Flange Distance | 2050mm | Dana 357/223 – xxx |
| Bevel Set Ratio | 10:33 | Dana 357/223 – xxx |
| Ring Gear Position | LHS (Looking from Input Flange Side) | Dana 357/223 – xxx |
| Planet Gear Ratio | 6 | Dana 357/223 – xxx |
| Wheel Hub Bolt | BCD 335mm, 10 studs M22×1.5, L=76mm | Dana 357/223 – xxx |
| Differential Type | Standard | Dana 357/223 – xxx |
| Service Brake | N266, 80 bar max. | Dana 357/223 – xxx |
| Parking Brake | Internal SAHR | Dana 357/223 – xxx |
| Input Flange Type | W40x2x30x18 DIN5480 | Dana 357/223 – xxx |
| Steering Cylinder | 32 degree max, 180 bar | Dana 357/223 – xxx |
| ——END—— | ||
Proportional Valve
Technical Indicator | Parameter | Model |
| Flow | 80 – 120L/min | Dana Brevini HPV41 |
| Rating Pressure | 350bar | Dana Brevini HPV41 |
| ——END—— | ||
Motor and Valve
Technical Indicator | Parameter | Model |
| otor Connect Mode | W35x2x30x16 / W40x2x30x18 DIN5480 | Dana Brevini SH7V 108 |
| Control Mode | Working Pressure Control | Dana Brevini SH7V 108R |
| Aux. Valve | Double balance valve and Conbalance Valve, Brake Valve | Dana Brevini SH7V 108R |
| ——END—— | ||
Slewing Bearing
Technical Indicator | Parameter | Model |
| Customized Production | Customized production according to Customer Drawings | Leonessa – Brevini |
| ——END—— | ||
Slewing Drive
Technical Indicator | Parameter | Model |
| Slewing Reduction | Max.Output 60000N.m | Dana Brevini ED2046M20/ BG2500+ |
| Rotation Motor | Orbital motor | Dana Brevini ED2046M20/ BG2500+ |
| Output Pinion | Model m=10 (m=10, Z=11) | Dana Brevini ED2046M20/ BG2500+ |
| ——END—— | ||
Arm control pump
Technical Indicator | Parameter | Model |
| Arm control | 75cc/r 350bar | Dana Brevini H185 |
| ——END—— | ||
Mud motor
Technical Indicator | Parameter | Model |
| Mud mix | 6cc/r 350bar | Dana Brevini HC185 |
| ——END—— | ||
FAQ
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
