Dana Parts for 1Boom Drill Rig

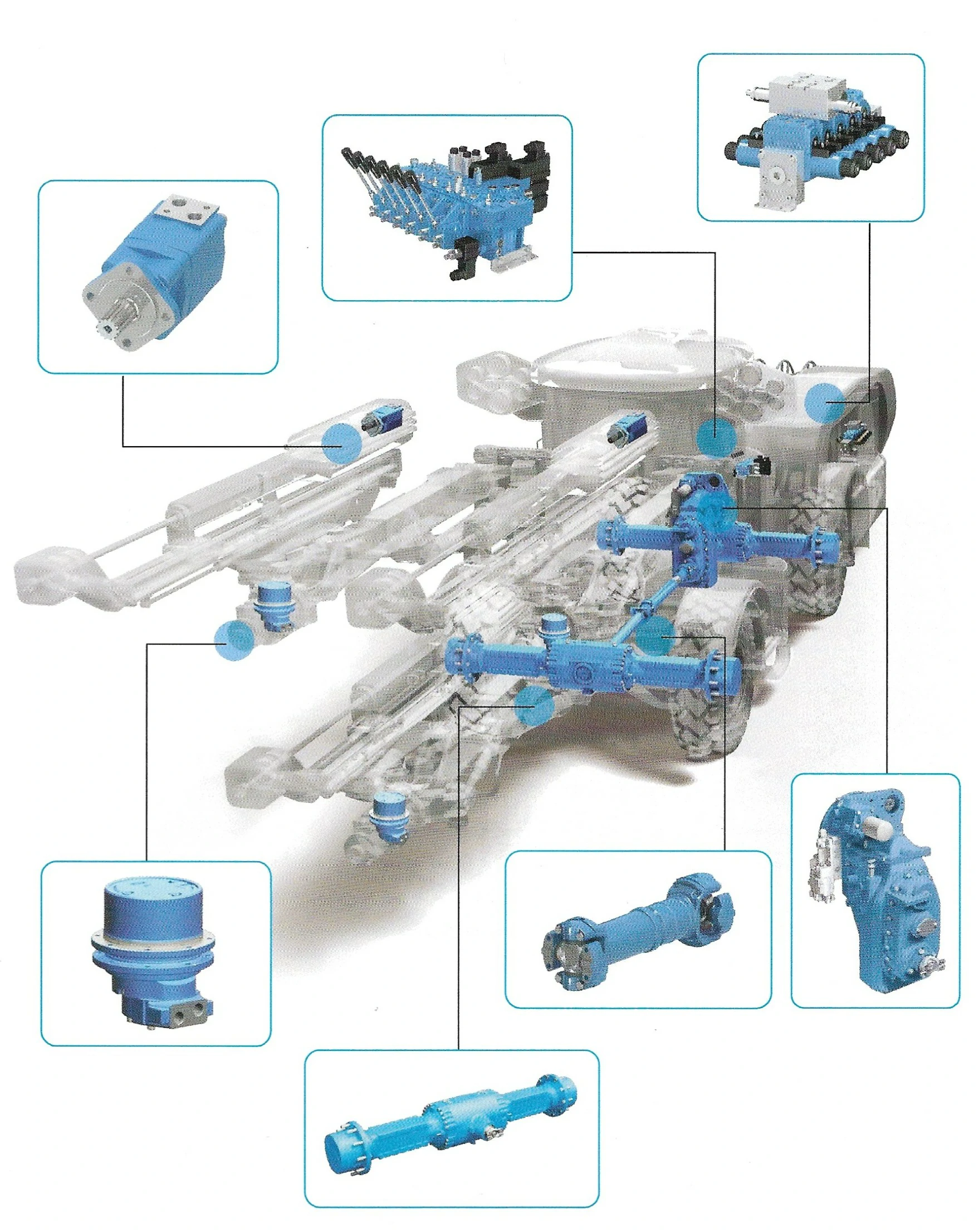

1Boom Drill Rig is a rock drilling rig carefully built by Dongfeng Dana. This model has a total weight of 12 tons and a maximum speed of 10 kph. The power of 58 kW and the engine of 258 Nm meet the needs of various working conditions and have excellent power and speed performance. Dana’s well-known model Dana 311/112-xxx is selected as the front axle and Dana 112-xxx is used as the rear axle. The transmission is accurate and reliable, and the braking system is safe and efficient.
1Boom Drill Rig provides reliable protection for your drilling operations with excellent performance and high-quality Dana components.
As part of EMAC, DANA provides non-power transmission and drive solutions for thermal management systems, control systems, transmissions and hydraulic accessories. We also provide components such as winches,pimp drives , piston motors and pumps.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
EMAC Group Participates in Automechanika Istanbul Exhibition in Istanbul
EMAC Group, provide a one-stop service with a complete power chain for Automotive, has announced its participation in the Automechanika Istanbul Exhibition in Istanbul, Turkey. The exhibition will take place from June 8th to June 11th, 2023.
As one of the largest automotive events in the world, the Automechanika Istanbul Show attracts exhibitors and visitors from across the globe. Our Company is excited to showcase its latest products and services at the event, which will provide an excellent opportunity to network with industry professionals and connect with potential customers.
As one of the largest automotive events in the world, the Automechanika Istanbul Show attracts exhibitors and visitors from across the globe. Our Company is excited to showcase its latest products and services at the event, which will provide an excellent opportunity to network with industry professionals and connect with potential customers.
EMAC Customer Interview-Thailand Engineering Company
EMAC’s customer interview video of 2023, EMAC finished a series of customer interview with 10 different business partners from different countries and regions, most of videos are took at customer’s company and factory, collecting all reviews and evaluations of EMAC, covering different industries in different country and regions, we believe this series of EMAC customer interview videos can help all of other customers get to know more about EMAC, our true customer interview case can greatly help customers relieve their worries, and build their confidence to cooperate with EMAC.
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust !
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust !
EMAC Customer Interview-Indonesia Shipyard
EMAC’s customer interview video of 2023, EMAC finished a series of customer interview with 10 different business partners from different countries and regions, most of videos are took at customer’s company and factory, collecting all reviews and evaluations of EMAC, covering different industries in different country and regions, we believe this series of EMAC customer interview videos can help all of other customers get to know more about EMAC, our true customer interview case can greatly help customers relieve their worries, and build their confidence to cooperate with EMAC.
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust!
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust!
Identification and Classification Report for Air Transport of Goods
Sinomac is dedicated to providing customers with safe, reliable cargo transportation services. Whether by sea or by air, ensuring safe delivery of our clients’ goods is at the heart of our operations. However, due to the complex nature of some cargo, especially industrial equipment like engines, many clients have concerns about whether such items might be classified as dangerous goods in air transport. To address these concerns, Sinomac provides a detailed analysis from multiple perspectives, including engine structure, relevant regulations, and the evaluations of authoritative inspection bodies, to give clients a clear and professional answer to this question.
Advantages of 1Boom Drill Rig
Precise control：Equipped with an advanced hydraulic control system, the 1boom drill rig offers unparalleled precision.
Economic stability: Higher payload capacity,excellent fuel effciency,Wide distance between supporting point of the dump body, the truck is reliable.
Long service Life: low maintenance cost and long lifetime, dual axles + swing axle design, the rig is more powerful, each tire’s load is evenly and lifetime is longer.
Powerful: Using Dana Brevini Orbital motor, large displacement, more efficient
Technical Specifications
General Information
Drill Rig Model | Max.Speed | Gross Weight | Engine Power | Engine Torque |
| 1Boom Drill Rig | 10 kph | 12.5 t | 58 kw | 258 Nm |
| 2Boom Drill Rig | 10 kph | 25 t | 120 kw | 618 Nm |
| 3Boom Drill Rig | 10 kph | 48 t | 173 kw | 907 Nm |
Front Axle
Technical Indicator | Parameter | Model |
| Mount Type | CL Trunnion | Dana 311/112-xxx |
| Flange to Flange Distance | 1400mm | Dana 311/112-xxx |
| Bevel Set Ratio | 31/9 | Dana 311/112-xxx |
| Ring Gear Position | LHS (Looking from Input Flange Side) | Dana 311/112-xxx |
| Planet Gear Ratio | 6 | Dana 311/112-xxx |
| Wheel Hub Bolt | BCD 275mm, 8 studs M22×1.5, L=76mm | Dana 311/112-xxx |
| Differential Type | Standard | Dana 311/112-xxx |
| Service Brake | N268, 80 bar max. | Dana 311/112-xxx |
| Parking Brake | N/A | Dana 311/112-xxx |
| Input Flange Type | W35x2x30x16 DIN 5480 | Dana 311/112-xxx |
| ——END—— | ||
Rear Axle
Technical Indicator | Parameter | Model |
| Mount Type | Pad | Dana 112-xxx |
| Flange to Flange Distance | 1790mm | Dana 112-xxx |
| Bevel Set Ratio | 31/9 | Dana 112-xxx |
| Ring Gear Position | LHS (Looking from Input Flange Side) | Dana 112-xxx |
| Planet Gear Ratio | 6 | Dana 112-xxx |
| Wheel Hub Bolt | BCD 275mm, 8 studs M22×1.5, L=76mm | Dana 112-xxx |
| Differential Type | 45% Limited Slip | Dana 112-xxx |
| Service Brake | N266, 80 bar max. | Dana 112-xxx |
| Parking Brake | Drum | Dana 112-xxx |
| Input Flange Type | DIN 120 | Dana 112-xxx |
| ——END—— | ||
Drill Rotation/ Pushpull Control
Technical indicator | Parameter | Model |
| Displacement | 80 – 393cc/r | Dana Brevini Orbital motor |
| Rating Pressure | 210bar | Dana Brevini Orbital motor |
| ——END—— | ||
Cylinder
Technical indicator | Parameter | Model |
| Flow | 80 – 120L/min | Dana Brevini HPV41/77 |
| ——END—— | ||
Oil Control Valve
Technical indicator | Parameter | Model |
| Rating Pressure | 350bar | Dana Brevini proportional valve + pilot valve |
| ——END—— | ||
Hydraulic Control Group
Technical indicator | Parameter | Model |
| Flow | 60 – 140L/min | Dana Brevini ARNO industry valve cartridge |
| Rating Pressure | 350bar | Dana Brevini ARNO industry valve cartridge |
| ——END—— | ||
Slewing Drive
Technical indicator | Parameter | Model |
| Slewing Bearing | Max. Output: 60000N.m | Dana – Brevini Orbital |
| Rotation Motor | Max. Input Torque | Dana – Brevini Orbital |
| Output Pinion | Model number: m = 10 | Dana – Brevini Orbital |
| ——END—— | ||
FAQ
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
Engine Sale Manual
Installation Drawing
Installation Manual
Operation Manual
Parts Catalogue
