Underground Mining
Dana provides transmission and drive solutions for numerous mining equipment, including drilling rig, wet sprayer, load haul dumper, dump truck, concrete mixer, bracket carrier, small personnel carrier, and utility vehicle, greatly improving the efficiency of various underground mining equipment.

Construction
Dana provides core components for construction machinery such as wheel excavator, compactor, motor grader, wheel loader, mixer truck, rotary drilling rig, horizontal drilling machine, concrete pump, telescopic handler, paver, including transmission, front and rear axle, truck motor and pilot control system.

Material Handling
Applied to crawler crane, forklift, empty container handler, aerial work platform, locomotives, etc., the transmission and drive components manufactured by Dana, including transmission, rear axle, hydraulic control system and sensors greatly improve the efficiency of various material handling equipment.

Agriculture
Applied to tractors, harvesters, etc., the front axle, material delivery motor, and truck gearbox manufactured by Dana are key components inside, greatly improving the efficiency of various agricultural machinery and equipment.
Find Parts by Application
Below list is the parts classified by different application.
Underground Mining
Model Gross Weight/t12.5-48 t 19 t 12.5-58.5 t 25-56 t 21 t 52 t 8.4 t 13 t 0 10 20 30 40 50 60 70 Dana Underground Mining Catalogue

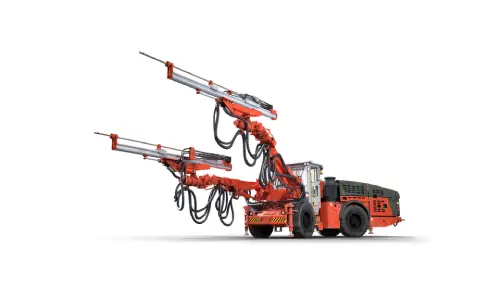

Rig Model: 3Boom Drill Rig Rig Model: 2Boom Drill Rig Rig Model: 1Boom Drill Rig Sprayer Model: Wet Sprayer Dumper Model: 8 m³ LHD Dumper Model: 6 m³ LHD Dumper Model: 4 m³ LHD Dumper Model: 3 m³ LHD Dumper Model: 2m³ LHD Dumper Model: 1.5 m³ LHD Truck Model: 30T Dumper Truck Model: 20T Dumper Truck Model: 12T Dumper Concrete Mixer Model: Concrete Mixer Carrier Model: 25T Bracket Truck Carrier Model: Small Personal Carrier Handler Model: 5T Utility Dana Parts for 3Boom Drill Rig
Max.Speed: 10 kph
Max.Grade: 25 %
Front Axle Model: Dana 37RL118-xxx
Rear Axle Model: Dana 213-xxx Dana Parts for 2Boom Drill Rig
Max.Speed: 10 kph
Max.Grade: 25 %
Front Axle Model: Dana 123-xxx
Rear Axle Model: Dana 123-xxx Dana Parts for 1Boom Drill Rig
Max.Speed: 10 kph
Max.Grade: 25 %
Front Axle Model: Dana 311/112-xxx

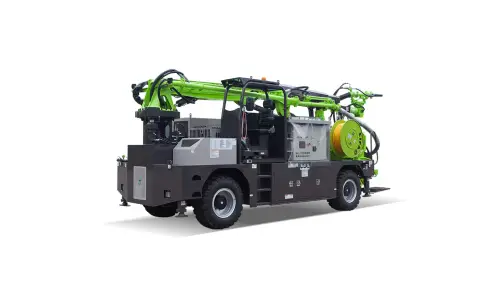

Rear Axle Model: Dana 112-xxx Dana Parts for Wet Sprayer
Max.Speed: 20 kph
Max.Grade: 30%
Front Axle Model: Dana 223-xxx

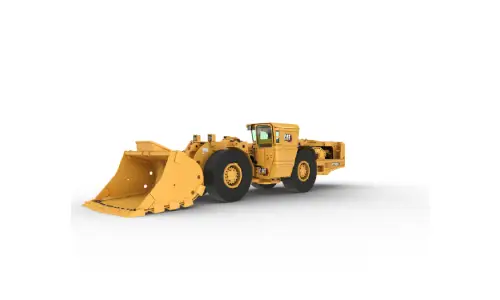

Rear Axle Model: Dana 357/223-xxx Dana Parts for 8 m³ LHD
Max.Speed: 20 kph
Max.Grade: 30 %
Engine Power: 368 kw
Engine Torque: 2324 Nm Dana Parts for 6 m³ LHD
Max.Speed: 20 kph
Max.Grade: 30 %
Front Axle Model: Dana 53R300-xxx
Rear Axle Model: 53R300-xxx Dana Parts for 4 m³ LHD
Max.Speed: 20 kph
Max.Grade: 30 %
Front Axle Model: Dana 20D3860-xxx
Rear Axle Model: Dana 20D3860-xxx Dana Parts for 3 m³ LHD
Max.Speed: 20 kph
Max.Grade: 30 %
Front Axle Model: Dana 16D2149-xxx
Rear Axle Model: Dana 16D2149-xxx Dana Parts for 2 m³ LHD
Max.Speed: 20 kph
Max.Grade: 30 %
Front Axle Model: Dana 14D2149-xxx
Rear Axle Model: Dana 14D2149-xxx Dana Parts for 1.5 m³ LHD
Max.Speed: 20 kph
Max.Grade: 30 %
Front Axle Model: Dana 14D2149-xxx
Rear Axle Model: Dana 14D2149-xxx Dana Parts for 30T Dumper
Max.Speed: 25 kph
Max.Grade: 30 %
Front Axle Model: Dana 20D3860-xxx
Rear Axle Model: Dana 20D3860-xxx Dana Parts for 20T Dumper
Max.Speed: 25 kph
Max.Grade: 30 %
Front Axle Model: Dana 17D-xxx
Rear Axle Model: Dana 17D-xxx Dana Parts for 12T Dumper
Max.Speed: 25 kph
Max.Grade: 30 %
Front Axle Model: Dana 17D-xxx
Rear Axle Model: Dana 17D-xxx Dana Parts for Concrete Mixer
Max.Speed: 20 kph
Max.Grade: 25%
Front Axle Model: Dana 123-xxx
Rear Axle Model: Dana 123-xxx Dana Parts for 25T Bracket Truck
Max.Speed: 25 kph
Max.Grade: 25%
Front Axle Model: Dana 19D2748-xxx

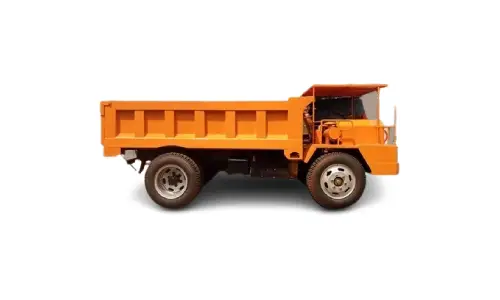

Rear Axle Model: Dana 19D2748-xxx Dana Parts for Small Personal Carrier
Max.Speed: 40 kph
Max.Grade: 30 %
Front Axle Model: Dana 211-xxx

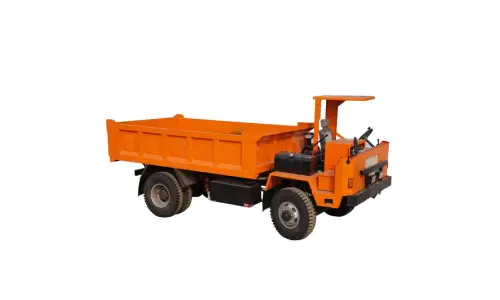

Rear Axle Model: Dana 111-xxx Dana Parts for 5T Utility
Max.Speed: 30 kph
Max.Grade: 30%
Front Axle Model: Dana 112-xxx
Rear Axle Model: Dana 112-xxx
Construction
Model Gross Weight/t5-15 t 12 t N/A N/A 14-62.5 t 20-35 t
9.1-12.1 tN/A N/A 0 10 20 30 40 50 60 70 Dana Construction Catalogue
Excavator Model: Middle WE(12-15t) Excavator Model: Samll WE(5-8t) Compactor Model: Compactor Grader Model: Motor Grader Machine Model: 880 Horizontal Drilling Machine Machine Model: 450 Horizontal Drilling Machine Machine Model: 680 Horizontal Drilling Machine Excavator Model: 12T Wheel Loader Excavator Model: 5T Wheel Loader Excavator Model: 3T Wheel Loader Paver Model: 12m Paver Paver Model: 9m Paver Paver Model: 6m Paver Handler Model: Middle TBH Handler Model: SmalI TBH Truck Model: 12m³ Mixer Truck Model: 10m³ Mixer Pump Model: 66m Pumper Pump Model : 56m Pumper Pump Model: 40m Pumper Dana Parts for Middle WE(12-15t)
Max.Speed: 30 kph
Max.Grade: 30 %
Front Axle Model: Dana 212-xxx
Rear Axle Model: Dana 112-xxx Dana Parts for Samll WE(5-8t)
Max.Speed: 30 kph
Max.Grade: 40 %
Front Axle Model: Dana 112-xxx

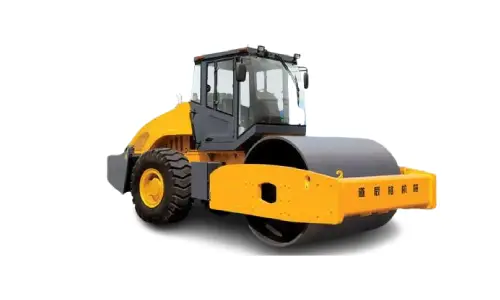

Rear Axle Model: Dana 112-xxx Dana Parts for Compactor
Power: 98 Kw
Torque: 493 Nm
Flange to Flange Distance: 1660 mm

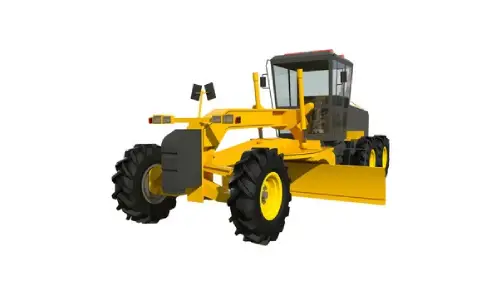

Wheel Hub Bolt: BCD335mm,8 studs M22x1.5,L=76mm Dana Parts for Motor Grader
Engine Power: 172 KW
Engine Volume: 950 Nm
Transmission Drop: LD
Transmission Flex Plate: 375mm without nut Dana Parts for 880 Horizontal Drilling Machine
Engine Power: 392 Kw
Max.Push and Pull Force: 880 kN
Max.Slewing Torque: 50000 N.m
Manifold : 130-250 L/min Dana Parts for 450 Horizontal Drilling Machine
Engine Power: 194 Kw
Max.Push and Pull Force: 480 kN
Max.Slewing Torque: 23500 N.m
Manifold : 130-250 L/min Dana Parts for 680 Horizontal Drilling Machine
Engine Power: 250 Kw
Max.Push and Pull Force: 680 kN
Max.Slewing Torque: 27000 N.m

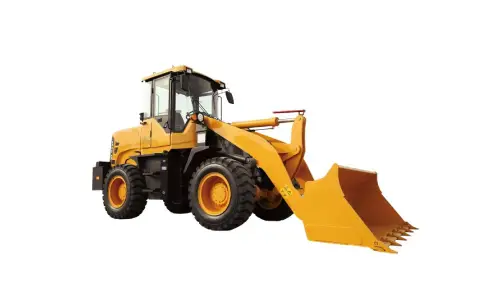

Manifold : 130-250 L/min Dana Parts for 12T Wheel Loader
Max.Speed: 30 kph
Gross Weight: 62.5 t
Front Axle Model: N/A
Rear Axle Model: N/A Dana Parts for 5T Wheel Loader
Max.Speed: 35 kph
Gross Weight: 22 t
Front Axle Model: Dana 37R-xxx
Rear Axle Model: Dana 37R-xxx Dana Parts for 3T Wheel Loader
Max.Speed: 35 kph
Gross Weight: 14 t
Front Axle Model: Dana 113-xxx
Rear Axle Model: Dana 113-xxx Dana Parts for 12m Paver
Engine Power: 210 Kw
Gross Weight: 35 ton
Truck gearbox: Max.Output Torque 70000N.m
Truck Motor: Motor Displacement 108 Dana Parts for 9m Paver
Engine Power: 159 Kw
Gross Weight: 30 ton
Truck gearbox: Max.Output Torque 45000N.m
Truck Motor: Motor Displacement 75 Dana Parts for 6m Paver
Engine Power: 128 Kw
Gross Weight: 20 ton
Truck gearbox: Max.Output Torque 45000N.m
Truck Motor: Motor Displacement 75 Dana Parts for Middle TBH
Curb Weight: 12.1 t
Lift Weight: 4.5 t
Front Axle Model: Dana 212-xxx
Rear Axle Model: Dana 212-xxx Dana Parts for SmalI TBH
Curb Weight: 9.1 t
Lift Weight: 3 t
Front Axle Model: Dana 212-xxx
Rear Axle Model: Dana 212-xxx Dana Parts for 12m³ Mixer
Engine Power: 159 Kw
Mixing Volume: 12 m³
Slewing Gearbox: Max.Output Torque 70000N.m
Slewing Motor: Motor Displacement 90 Dana Parts for 10m³ Mixer
Engine Power: 128 Kw
Mixing Volume: 10 m³
Slewing Gearbox: Max.Output Torque 60000N.m
Slewing Motor: Motor Displacement 75 Dana Parts for 66m Pumper
Engine Power: 210 Kw
Mixing Volume: ≤66m
Slewing Gearbox: Max.Output Torque 35000N.m
Slewing Motor: Motor Displacement 200 Dana Parts for 56m Pumper
Engine Power : 159 Kw
Mixing Volume : <56m
Slewing Gearbox : Max.Output Torque 25000N.m
Slewing Motor : Motor Displacement 200 Dana Parts for 40m Pumper
Engine Power: 128 Kw
Mixing Volume: ≤40m
Slewing Gearbox: Max.Output Torque 25000N.m
Slewing Motor: Motor Displacement 160
Material Handling
Model Gross Weight/t25-100 t 55-150 t 38-45 t 12.3-42.5 t 12.5-48 t 8-18 t 85.5 t 85.5 t 15-50 t 5.1 t 14.2 t 6 t 84 t 0 30 60 90 120 150 180 210 Dana Material Handling Catalogue

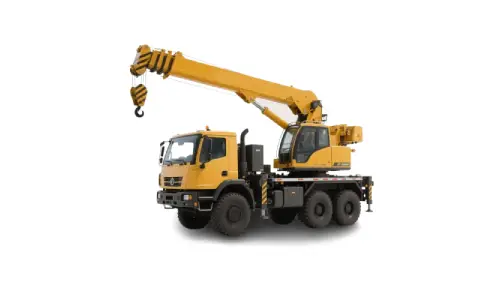

Crane Model: 100T RT Crane Crane Model: 75T RT Crane Crane Model: 55T RT Crane Crane Model: 35T RT Crane Crane Model: 25T RT Crane Crane Model: 55T Crawler Crane Crane Model: 90T Crawler Crane Crane Model: 55T Crawler Crane Stacker Model: 45T Reach stacker handle Model: Material Handle Fork Lift Model: 16T Fork Lift Fork Lift Model: 30T Fork Lift Fork Lift Model: 10T Fork Lift Handler Model: ECH Platform Model: 18 T AWP Platform Model: 14T AWP Platform Model: 8T AWP Transporter Model: Slag Transporter Handle Model: Material Handle Tractor Model: Large Aircraft Tractor Tractor Model: Middle Aircraft Tractor Tractor Model: Small Aircraft Tractor Tractor Model: Airport Luggage Tractor Bus Model: Airport Shuttle Bus Excavator Model: AGV Locomotive Model: Locomotive Dana Parts for 100T RT Crane
Lit WEIGHT: 100 t
Engine Power: 239 kw
Engine Torque: 1450 Nm
Tire Type: 33.25-29
Tire Radius: 927 mm Dana Parts for 75T RT Crane
Lit WEIGHT: 75 t
Engine Power: 205 kw
Engine Torque: 990 Nm
Tire Type: 29.5R25
Tire Radius: 880 mm Dana Parts for 55T RT Crane
Lit WEIGHT: 55 t
Engine Power: 198 kw
Engine Torque: 970 Nm
Tire Type: 20.5R25
Tire Radius: 840 mm Dana Parts for 35T RT Crane
Lit WEIGHT: 35 t
Engine Power: 119 kw
Engine Torque: 740 Nm
Tire Type: 20.5R25
Tire Radius: 530 mm Dana Parts for 25T RT Crane
Lit WEIGHT: 25 t
Engine Power: 119 kw
Engine Torque: 740 Nm
Tire Type: 20.5R25
Tire Radius: 530 mm Dana Parts for 150T Crawler Crane
Gross Weight: 55 t
Max.Grade: 15 %
Engine Power: 154 kW
Manifoid flow: 350 bar Dana Parts for 90T Crawler Crane
Gross Weight: 90 t
Max.Grade: 15 %
Engine Power: 154 kW
Manifoid flow: 350 bar Dana Parts for 55T Crawler Crane
Gross Weight: 55 t
Max.Grade: 15 %
Engine Power: 154 kW

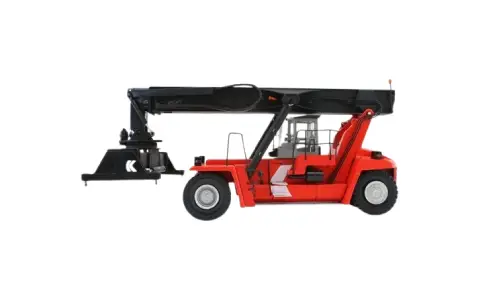

Manifoid flow: 350 bar Dana Parts for 45T Reach stacker
Li WEIGHT: 45 t
Tire Type: 18.00-25
Axle Model: Dana 148-xxx Dana Parts for 38T Reach stacker
Li WEIGHT: 38 t
Tire Type: 18.00-25
Axle Model: Dana 148-xxx Dana Parts for 16T Fork Lift
Engine Power: 116 kw
Engine Torque: 561 Nm
Tire Type: 12.00-20
Tire Radius: 540 mm Dana Parts for 30T Fork Lift
Engine Power: 185 kw
Engine Torque: 1037 Nm
Tire Type: 16-25
Tire Radius: 702 mm Dana Parts for 10T Fork Lift
Engine Power: 82 kw
Engine Torque: 441 Nm
Tire Type: 9.00-20

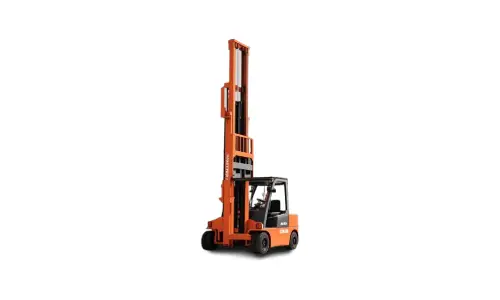

Tire Radius: 509 mm Dana Parts for ECH
Motot Displacement: 55-160 cc/r
Motor Rating Pressure: 430 bar

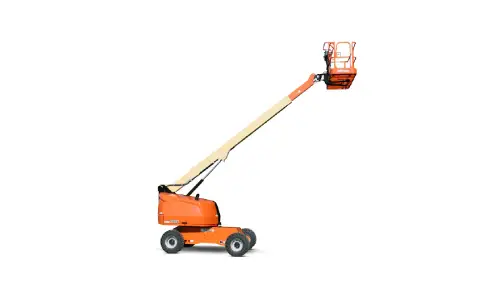

Front Axle Model: Dana 145-xxx Dana Parts for 18T AWP
Tire Type: 385/65-22.5
Gross Weight: 18 T
Front Axle Model: Dana 212-xxx
Rear Axle Model: Dana 602/212-xxx Dana Parts for 14T AWP
Tire Type: 385/65-22.5
Gross Weight: 14 T
Front Axle Model: Dana 212-xxx
Rear Axle Model: Dana 602/212-xxX Dana Parts for 8T AWP
Tire Type: 315/55D20
Gross Weight: 8 T
Front Axle Model: Dana 211-xxx

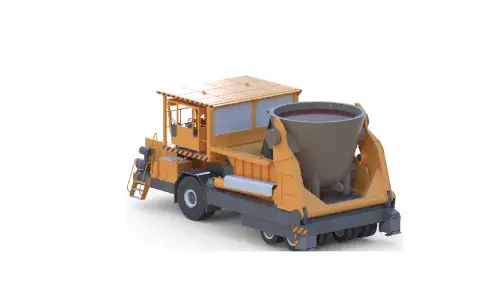

Rear Axle Model: Dana 603/211-xxX Dana Parts for Slag Transporter
Curb Weight: 35.5 t
Engine Power: 194 kw
Engine Torque: 1021 Nm
Tire Type: 14.00-24-24
Tire Radius: 680 mm Dana Parts for Material Handle
Curb Weight: 35.5 t
Gross Weight: 85.5 t
Front Axle Model: Dana 246-xxx
Rear Axle Model: Dana 246-xxx Dana Parts for Large Aircraft Tractor
Max.Speed: 25 kph
Max.Grade: 15 %
Front Axle Model: Dana 246-xxx
Rear Axle Model: Dana 246-xxx Dana Parts for Middle Aircraft Tractor
Max.Speed: 25 kph
Max.Grade: 15 %
Front Axle Model: Dana 213-xxx
Rear Axle Model: Dana 213-xxx Dana Parts for Small Aircraft Tractor
Max.Speed: 25 kph
Max.Grade: 15 %
Front Axle Model: Dana 212-xxx

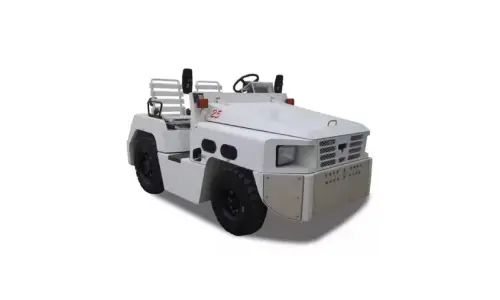

Rear Axle Model: Dana 212-xxx Dana Parts for Airport Luggage Tractor
Max.Speed: 25 kph
Max.Grade: 30%
Front Axle Model: Dana 111-xxx Dana Parts for Airport Shuttle Bus
Curb Weight: 14.2 t
Lift Weight: 21.5 t
Engine Power: 136 kw
Engine Torque: 646 Nm Dana Parts for AGV
Max.Speed: 22 kph
Gross Weight: 6 t
Front Axle Model: Dana 223-xxx
Rear Axle Model: Dana 223-xxx Dana Parts for Locomotive
Engine Power: 350 kw
Gross Weight: 84 t
Max.Speed: 100 kph
Max.Grade: 3 %
Agriculture
Model Gross Weight/tN/A 10-30 t 0 10 20 30 40 50 60 70

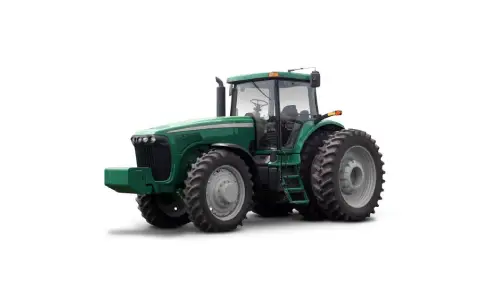

Tractor Model: M60 Tractor Tractor Model: M50 Tractor Tractor Model: M30 Tractor Tractor Model: M25 Tractor Tractor Model: M20 Tractor Tractor Model: M10 Tractor Harvester Model: 30T Harvester Harvester Model: 20T Harvester Harvester Model: 10T Harvester Dana Parts for M60 Tractor
Power: 280 hp
MountType: CL Trunnion
Flange to Flange Distance: 1900 mm
Front Axle Model: Dana 755-xxx Dana Parts for M50 Tractor
Power: 220 hp
MountType: CL Trunnion
Flange to Flange Distance: 1900 mm
Front Axle Model: Dana 750-xxx Dana Parts for M30 Tractor
Power: 125 hp
MountType: CL Trunnion
Flange to Flange Distance: 1640 mm
Front Axle Model: Dana 730-xxx Dana Parts for M25 Tractor
Power: 105 hp
MountType: CL Trunnion
Flange to Flange Distance: 1640 mm
Front Axle Model: Dana 725-xxx Dana Parts for M20 Tractor
Power: 65 hp
MountType: CL Trunnion
Flange to Flange Distance: 1580 mm
Front Axle Model: Dana 720-xxx Dana Parts for M10 Tractor
Power: 65 hp
MountType: CL Trunnion
Flange to Flange Distance: 1580 mm
Bevel Set Ratio: 30:11 Dana Parts for 30T Harvester
Engine Power: 110 Kw
Gross Weight: 30 ton
Truck gearbox: Max.Output Torque 35000N.m
Truck Motor: Motor Displacement 75 Dana Parts for 20T Harvester
Engine Power: 89 Kw
Gross Weight: 20 ton
Truck gearbox: Max.Output Torque 18000N.m
Truck Motor: Motor Displacement 75 Dana Parts for 10T Harvester
Engine Power: 68 Kw
Gross Weight: 10 ton
Truck gearbox: Max.Output Torque 10000N.m
Truck Motor: Motor Displacement 55
Customer Review
SEMA has Discovered the “Mad Max” Pickup Truck!
Therefore, the car’s doomsday modification style is also inherited from the legendary experience of the car, and the car is named "Chain Smoker". The whole car is toned based on rust and patina, and many parts of the body are bundled with scrap iron chains to highlight...
Multi-Fuel Engine Debuted in North America
Cummins recently announced that it will display a new generation of 15-liter heavy-duty multi-fuel engine platform during the Las Vegas Construction Machinery Expo (Con Expo, referred to as: North America Exhibition) from March 14th to 18th to meet North American non-road Tier 5 emission standards, providing OEMs with the opportunity to accelerate the decarbonization of heavy-duty off-highway applications.
Zero-carbon Brand Makes its Debut in North America
On the first day of the North American exhibition (CONEXPO CON/AGG) on March 14, Cummins made its debut with the Accelera zero-carbon brand, reaffirming that "zero emission" is the top priority of Cummins' development, and promised to achieve the goal of zero carbon by 2050
Malaysia | Construction – Ground Support Equipment
EMAC's customer interview video of 2023, EMAC finished a series of customer interview with 10 different business partners from different countries and regions, most of videos are took at customer's company and factory, collecting all reviews and evaluations of EMAC, covering different industries in different country and regions, we believe this series of EMAC customer interview videos can help all of other customers get to know more about EMAC, our true customer interview case can greatly help customers relieve their worries, and build their confidence to cooperate with EMAC. A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust!
Indonesia | Construction – Customer Lnterview
EMAC's customer interview video of 2025, EMAC finished a series of customer interview with 10 different business partners from different countries and regions, most of videos are took at customer's company and factory, collecting all reviews and evaluations of EMAC, covering different industries in different country and regions, we believe this series of EMAC customer interview videos can help all of other customers get to know more about EMAC, our true customer interview case can greatly help customers relieve their worries, and build their confidence to cooperate with EMAC. A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust!
Vietnam | Pump – Electric Motor
EMAC's customer interview video of 2024, EMAC finished a series of customer interview with 10 different business partners from different countries and regions, most of videos are took at customer's company and factory, collecting all reviews and evaluations of EMAC, covering different industries in different country and regions, we believe this series of EMAC customer interview videos can help all of other customers get to know more about EMAC, our true customer interview case can greatly help customers relieve their worries, and build their confidence to cooperate with EMAC. A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust!
-
SEMA has Discovered the “Mad Max” Pickup Truck!
Therefore, the car’s doomsday modification style is also inherited from the legendary experience of the car, and the car is named "Chain Smoker". The whole car is toned based on rust and patina, and many parts of the body are bundled with scrap iron chains to highlight...
-
Multi-Fuel Engine Debuted in North America
Cummins recently announced that it will display a new generation of 15-liter heavy-duty multi-fuel engine platform during the Las Vegas Construction Machinery Expo (Con Expo, referred to as: North America Exhibition) from March 14th to 18th to meet North American non-road Tier 5 emission standards, providing OEMs with the opportunity to accelerate the decarbonization of heavy-duty off-highway applications.
-
Zero-carbon Brand Makes its Debut in North America
On the first day of the North American exhibition (CONEXPO CON/AGG) on March 14, Cummins made its debut with the Accelera zero-carbon brand, reaffirming that "zero emission" is the top priority of Cummins' development, and promised to achieve the goal of zero carbon by 2050
-
Digital Transformation of Steel
Mountains, rocks, unmanned vehicles... these elements that appear on the moon in science fiction movies are now playing out in Shougang Mining's scenes under the new quality of productivity. At Shougang Mining's Shuichang Iron Mine, 10 mining trucks are operating safely and orderly along the established routes, but there is no one in the cockpit. Since its commissioning in November 2024, the mining electric unmanned wide-body mining truck has received widespread attention from the media. Why...
-
Malaysia | Construction – Ground Support Equipment
EMAC's customer interview video of 2023, EMAC finished a series of customer interview with 10 different business partners from different countries and regions, most of videos are took at customer's company and factory, collecting all reviews and evaluations of EMAC, covering different industries in different country and regions, we believe this series of EMAC customer interview videos can help all of other customers get to know more about EMAC, our true customer interview case can greatly h...
-
Indonesia | Construction – Customer Lnterview
EMAC's customer interview video of 2025, EMAC finished a series of customer interview with 10 different business partners from different countries and regions, most of videos are took at customer's company and factory, collecting all reviews and evaluations of EMAC, covering different industries in different country and regions, we believe this series of EMAC customer interview videos can help all of other customers get to know more about EMAC, our true customer interview case can greatly h...
Global Activity
SEMA has Discovered the “Mad Max” Pickup Truck!
Therefore, the car’s doomsday modification style is also inherited from the legendary experience of the car, and the car is named "Chain Smoker". The whole car is toned based on rust and patina, and many parts of the body are bundled with scrap iron chains to highlight...
Multi-Fuel Engine Debuted in North America
Cummins recently announced that it will display a new generation of 15-liter heavy-duty multi-fuel engine platform during the Las Vegas Construction Machinery Expo (Con Expo, referred to as: North America Exhibition) from March 14th to 18th to meet North American non-road Tier 5 emission standards, providing OEMs with the opportunity to accelerate the decarbonization of heavy-duty off-highway applications.
Zero-carbon Brand Makes its Debut in North America
On the first day of the North American exhibition (CONEXPO CON/AGG) on March 14, Cummins made its debut with the Accelera zero-carbon brand, reaffirming that "zero emission" is the top priority of Cummins' development, and promised to achieve the goal of zero carbon by 2050
